2002 SCM M3 Used Multi Rip Saw #BM2226
2002 SCM M3 Used Multi Rip Saw #BM2226
Location:Ontario, Canada
Description

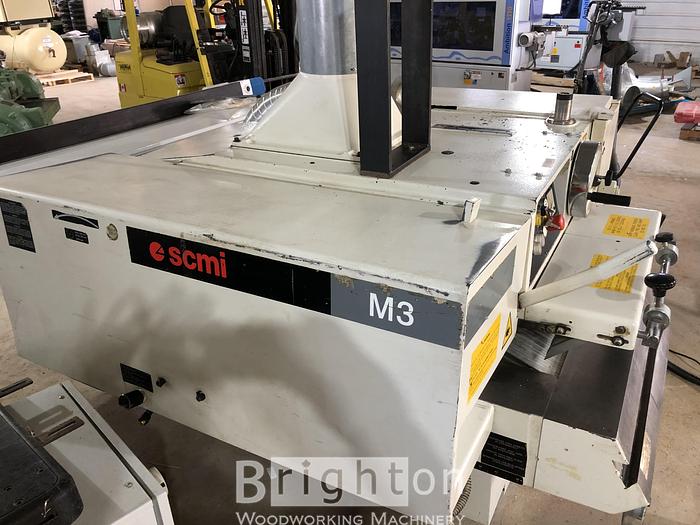

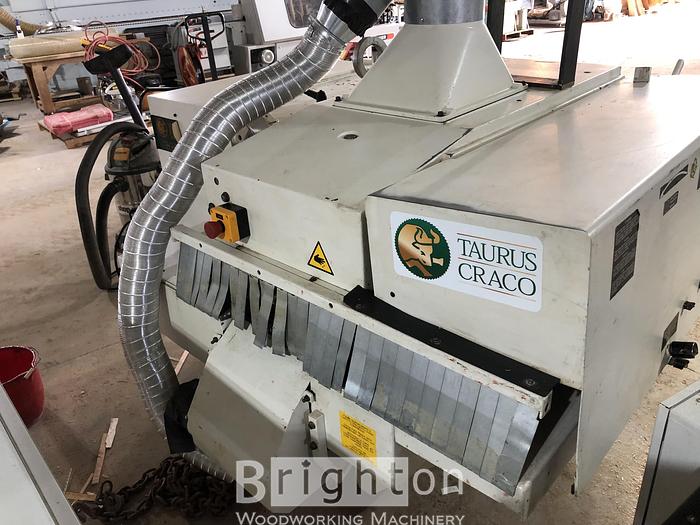

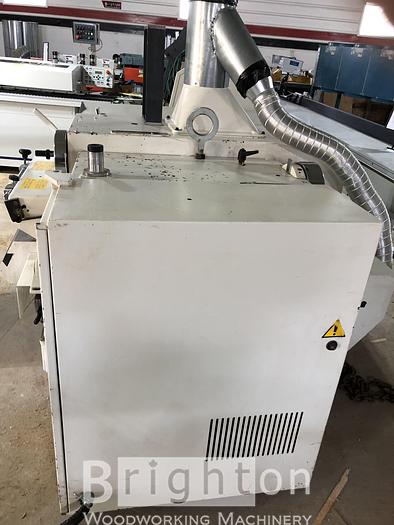

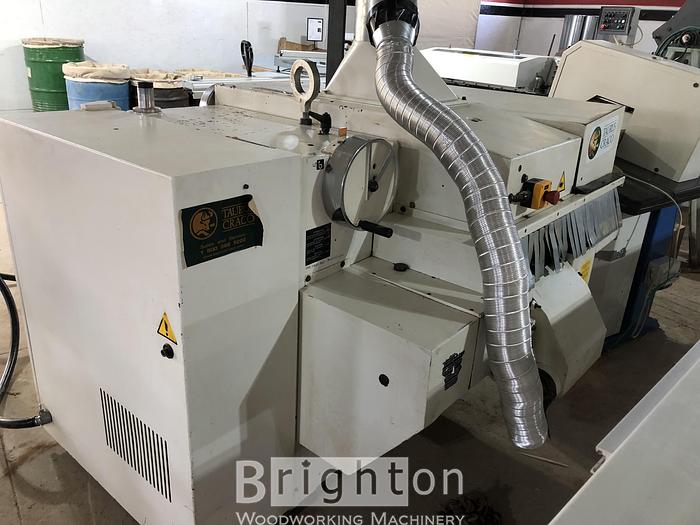

SCM model M3, 50hp Multi-rip saw. (includes rip fence not in picture)
Click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!!
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
Specifications
| Manufacturer | SCM |
| Model | M3 Used Multi Rip Saw |
| Year | 2002 |
| Condition | Used |
| Serial Number | 011024 |
| Stock Number | BM2226 |
| Quality | Very Good |

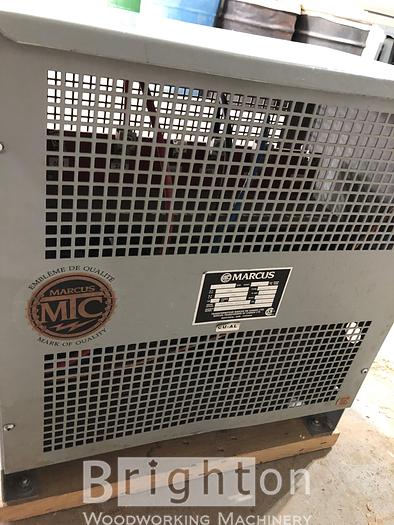

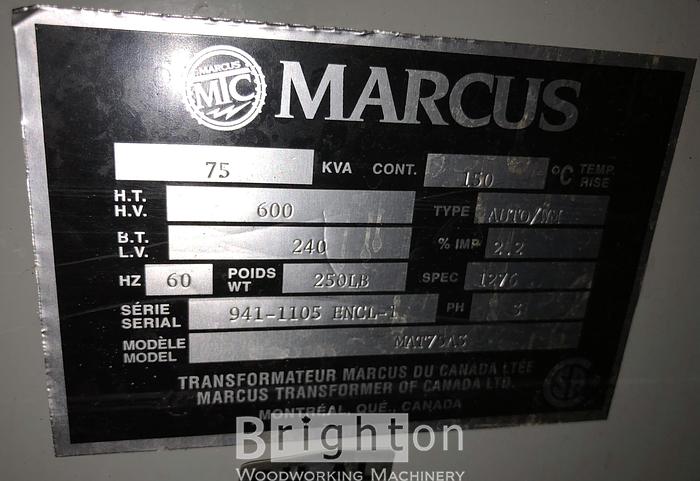

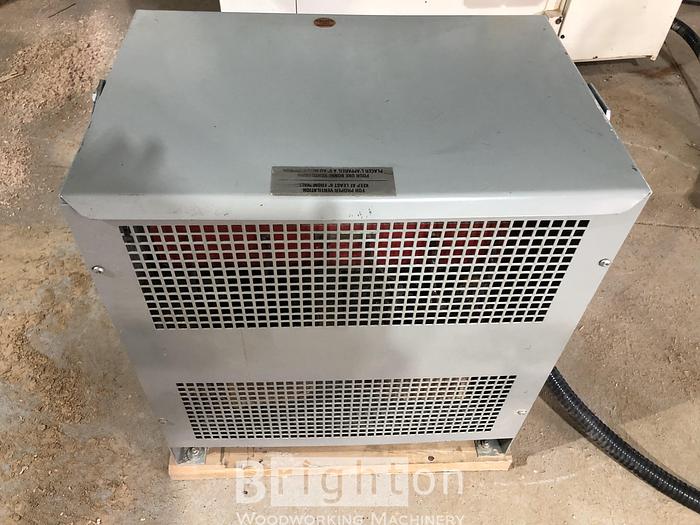

| Electrics | 600 volt with included transformer. machine is 230 V / 3 Ph / 60 Hz |
Additional Features
(includes rip fence)
The machine is 6ft x 6ft x 6’-4 inches high.
The weight is 4000 lbs.
50hp main motor
12 inch arbor
The SCM Multiblade M3 Rip Saw with 50hp main motor.
is a heavy-duty feed track that ensures any vibrations in the machining process are absorbed away from the workpiece.
This multi rip saw is made with a cast-iron monobloc base, low friction slideways, automatic lubrication of feed tracks, a feed track made of cast iron spheroidal links with direct joints and a shaft sleeve.
This quality M3 saw is a solid and reliable product that makes no sacrifices in functionality whilst keeping a simple and compact design.
max. width of blade pack 12 inch.
– width of feed track 12 inch.
– max. blade diam. 13-3/4 inch.
– min. cutting length 10 inch
– diam. of sawblade sleeve (blade bore) 2.-3/4 inch
– blade rotation speed 4200rpm
– feed speed of continuously adjustable 6 – 48m/min
– height of worktable from floor 750mm
– distance base to first blade on right 220mm
– worktable dimensions 1530 x 750mm
– Includes upgraded motor 50hp. (standard is 35hp)
