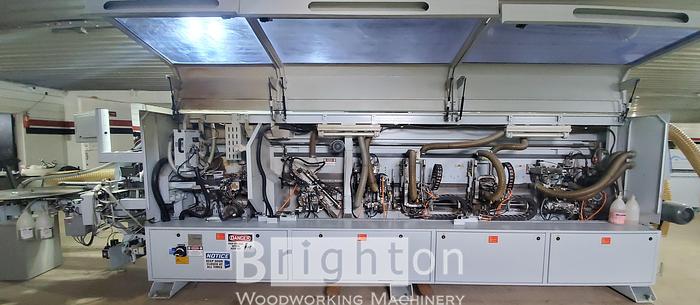

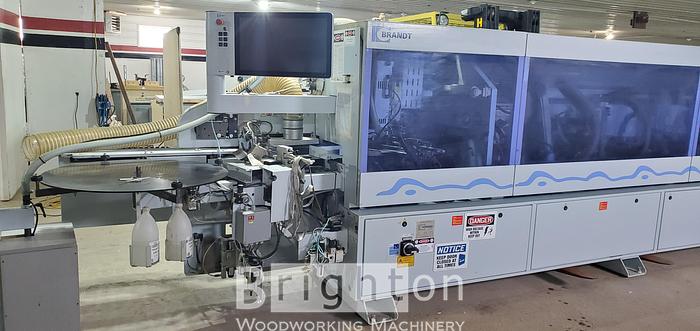

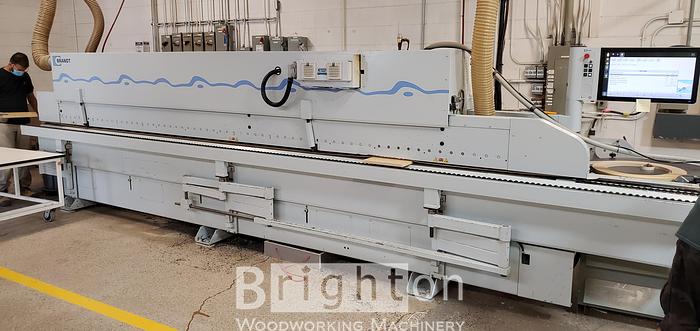

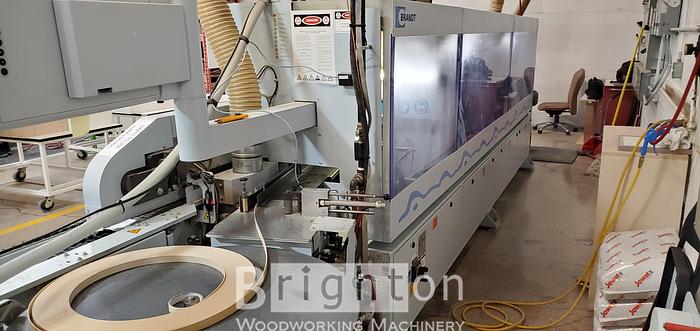

2014 Homag Brandt KDF 860 Airtec Edgebander
2014 Homag Brandt KDF 860 Airtec Edgebander
Location:Ontario, Canada
Description
Amazing BRANDT OPTIMAT KDF 860 C Edgebander with Pre-Milling, Premelt, large glue reservoir with vacuum, Corner Rounding + "AIRTEC" Zero Joint Technology
Click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!!
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
Specifications
| Manufacturer | Homag |
| Model | Brandt KDF 860 Airtec Edgebander |
| Year | 2014 |
| Condition | Used |
| Stock Number | BM2209 |
| Quality | Very Good |

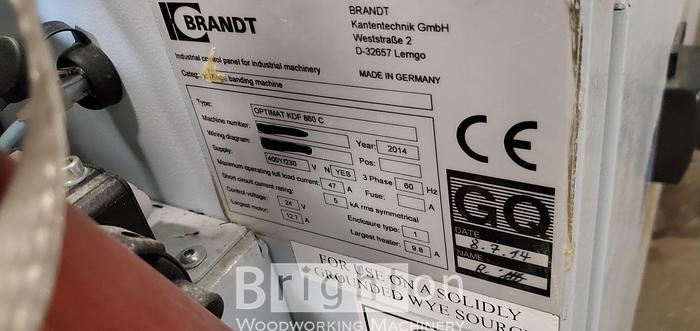

| Electrics | 575 V / 3 Ph / 60 Hz |
Additional Features
BRANDT OPTIMAT KDF 860 C Edgebander with Pre-Milling, Premelt, large glue reservoir with vacuum, Corner Rounding + "AIRTEC" Zero Joint Technology
Specifications:
-- Edge thickness 0.4 - 12 mm (0.02" - 0.50"), incl. 3 mm (0.12") PVC banding.
-- Workpiece thickness 8 - 60 mm (0.314" - 2.375").
-- Min. workpiece width 70 mm (2.76"), Min. workpiece length 120 mm (4.75").
-- Working height 950 mm (37.80").
Equipped with:
-- 3 HP (2.2 kW) Feed motor for Variable feed speeds 26 - 65 FPM (8 - 20 MPM) applying solid or using corner rounding units.
-- Infeed panel support with Roller guide extends out to 800 mm (31.4"), Motorized top pressure beam adjustment with 0.16 HP (0.12 kW) Motor.
-- 80 mm (3.15") W Heavy-duty feed chain, with Rubber pads, Automatic chain track lubrication.
-- Top pressure section with Double-wide compound V-belt to prevent panel movement.
-- All cutting & trimming workstations are HF (High Frequency Motors), Line control (no limit switches) for workstation functions.
